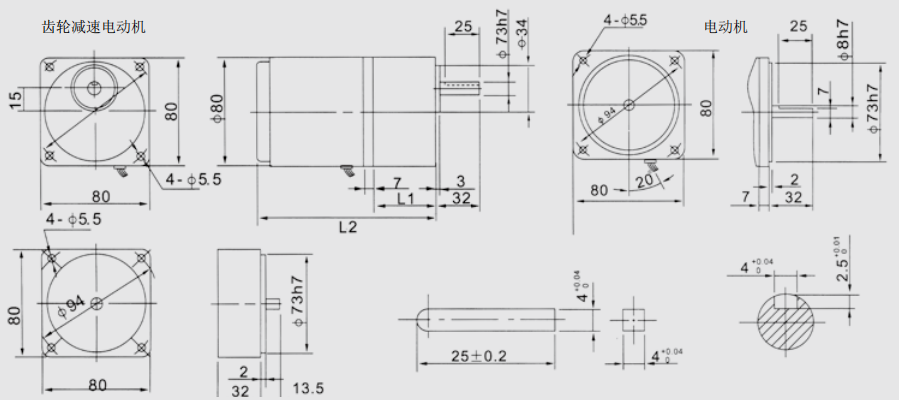

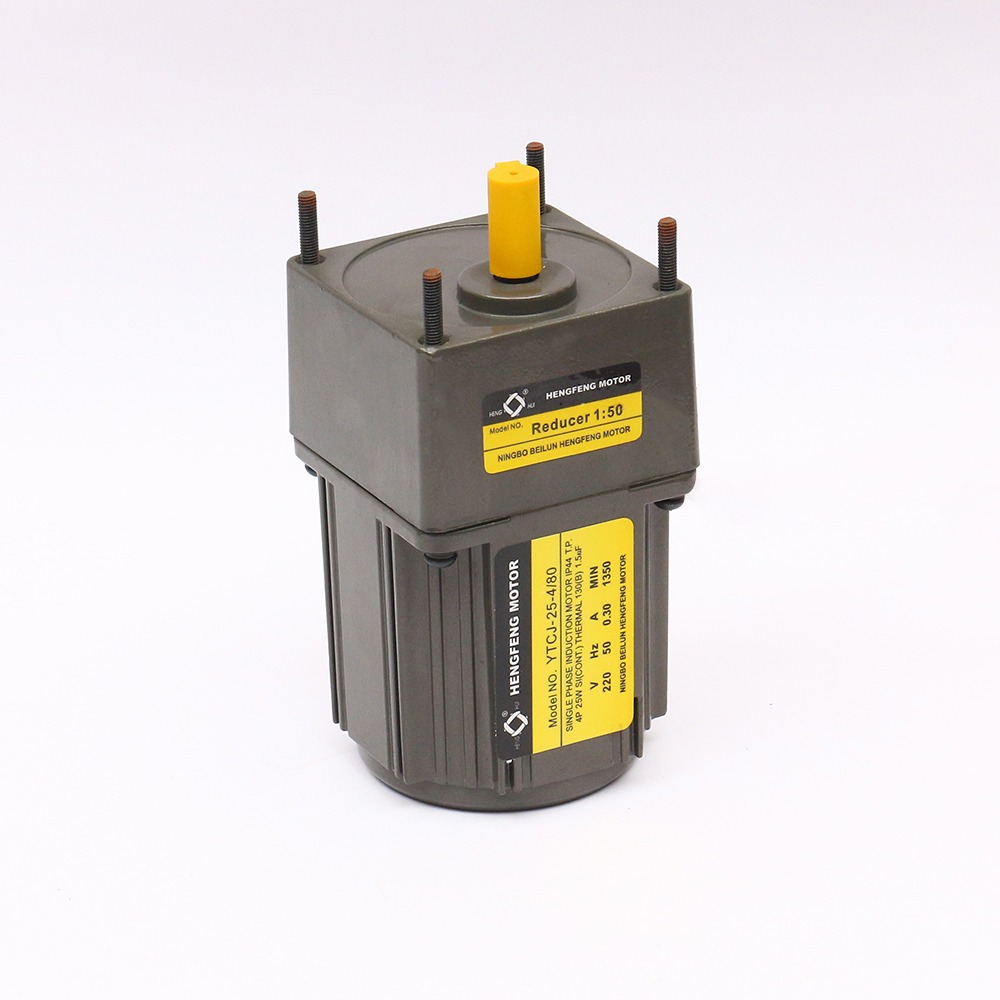

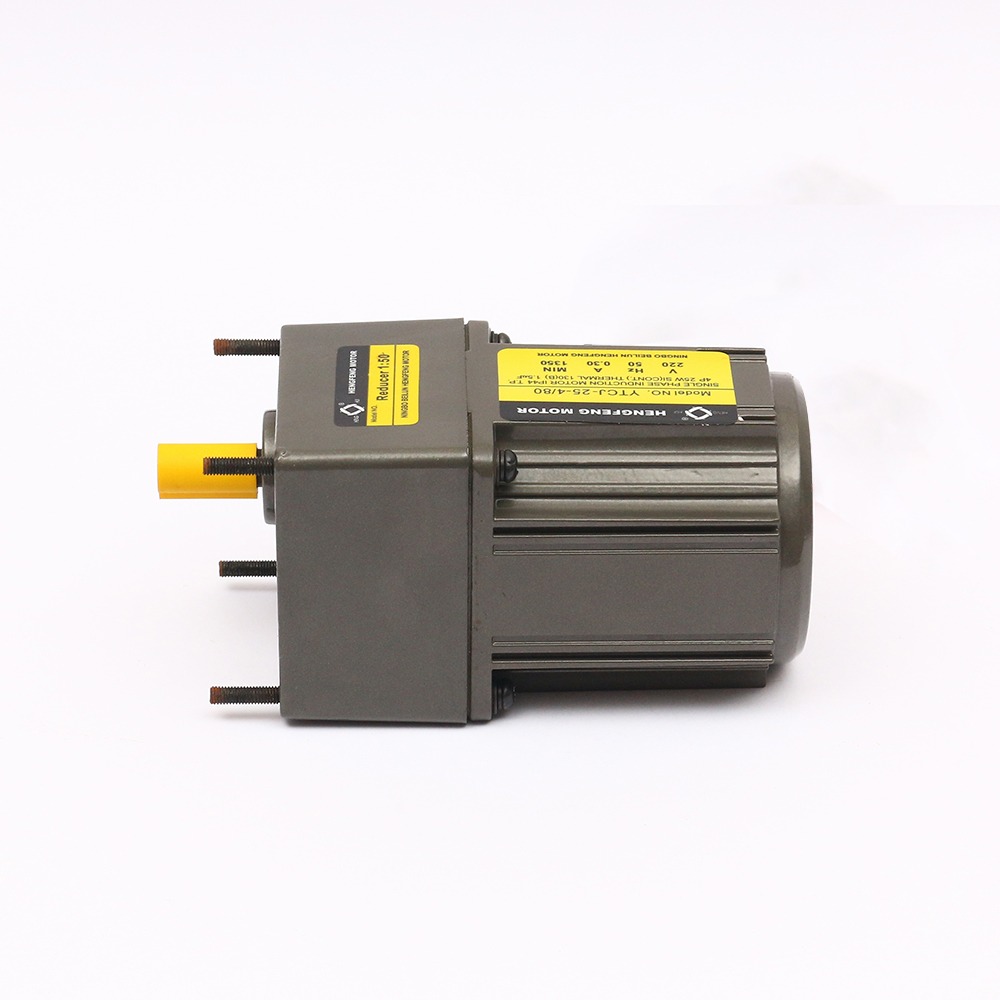

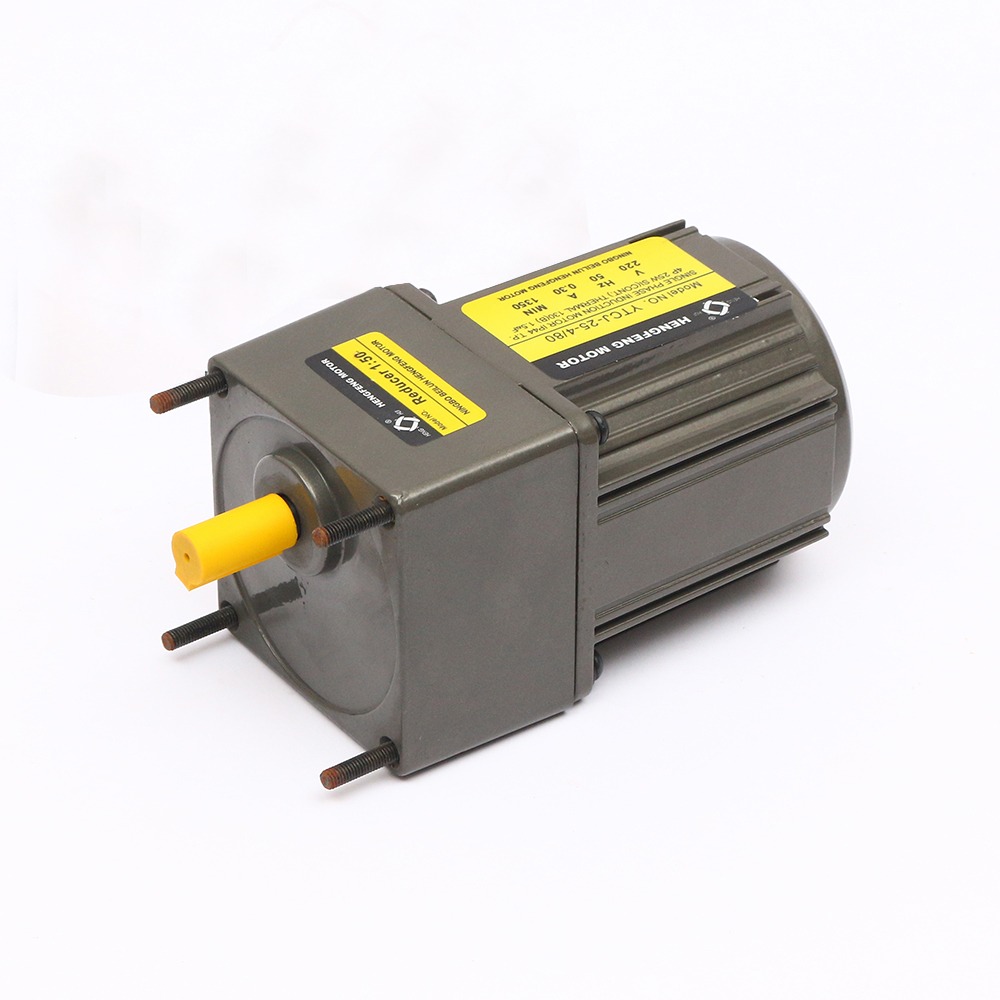

外形尺寸
功率 Power(W): 25W
減速比 Reductio Ratio: 3~15, 18~300
L1(mm): 32, 45
L2(mm): 119, 132
安裝螺釘 Fixing Bolt: M5×55, M5×70
凈重 N.W.(kg): 2.15, 2.40
| 電機性能參數 | |||||||||
|
型號 Type |
功率 Power (W) |
電壓 Voltage (V) |
頻率 Frequency (Hz) |
電流 Current (A) |
起動轉矩 Starting Torue mN.m(g.cm) |
額定轉矩 Rated Speed mN.m(g.cm) |
額定轉速 Rated Speed r/min |
電容 Capacitor μF/VAC |
工作狀態 Operating Mode |
| YYTCJ-25-4/80-1 | 25 | 220 | 50 | 0.30 | 110(1100) | 190(1900) | 1350 | 1.5/450 | 連續 Cont |
| YYTCJ-25-4/80-2 | 0.35 | 120(1200) | 190(1900) | 1350 | 1.5/450 | 30min | |||
| YYTCJ-25-4/80-3 | 25 | 110 | 60 | 0.60 | 110(1100) | 150(1500) | 1650 | 8/450 | 連續 Cont |
| YYTCJ-25-4/80-4 | 0.70 | 120(1200) | 150(1500) | 1650 | 8/450 | 30min | |||
|
允許負載 50Hz |
||||||||||||||||||||||
|
型號 YYTCJ-25-4/80 |
轉速 r/min 速比 |
500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 6 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | ||
|
轉矩 |
0.5 | 0.6 | 0.83 | 1 | 1.25 | 1.49 | 2.08 | 2.49 | 2.69 | 3.74 | 4.49 | 5.39 | 6.77 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 5 | 6 | 8.3 | 10 | 12.5 | 14.9 | 20.8 | 24.9 | 26.9 | 37.4 | 44.9 | 53.9 | 67.7 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
|
允許負載 60Hz |
||||||||||||||||||||||
|
型號 YYTCJ-25-4/80 |
轉速 r/min 速比 |
600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 7.2 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | ||
|
轉矩 |
0.4 | 0.5 | 0.7 | 0.8 | 1 | 1.2 |
1.7 |
2.1 | 2.2 | 3.1 | 3.7 | 4.5 | 5.6 | 6.7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 4 | 5 | 7 | 8 | 10 | 12 | 17 | 21 | 22 | 31 | 37 | 45 | 56 | 67 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
