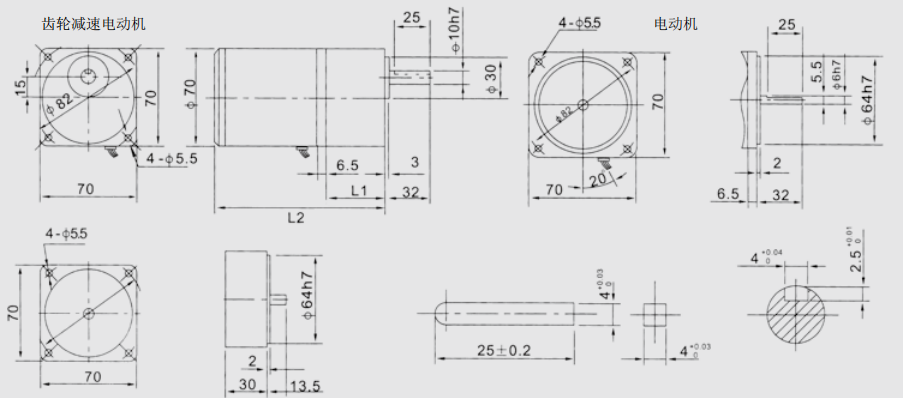

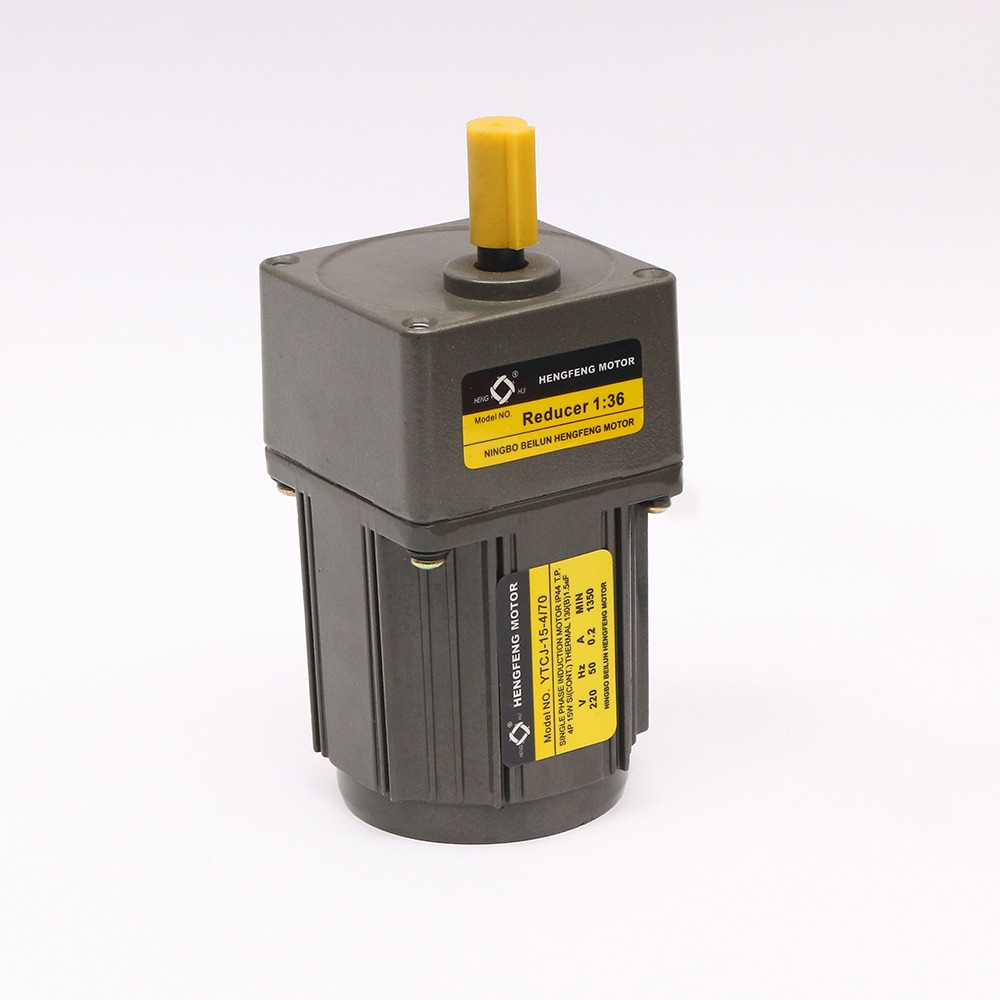

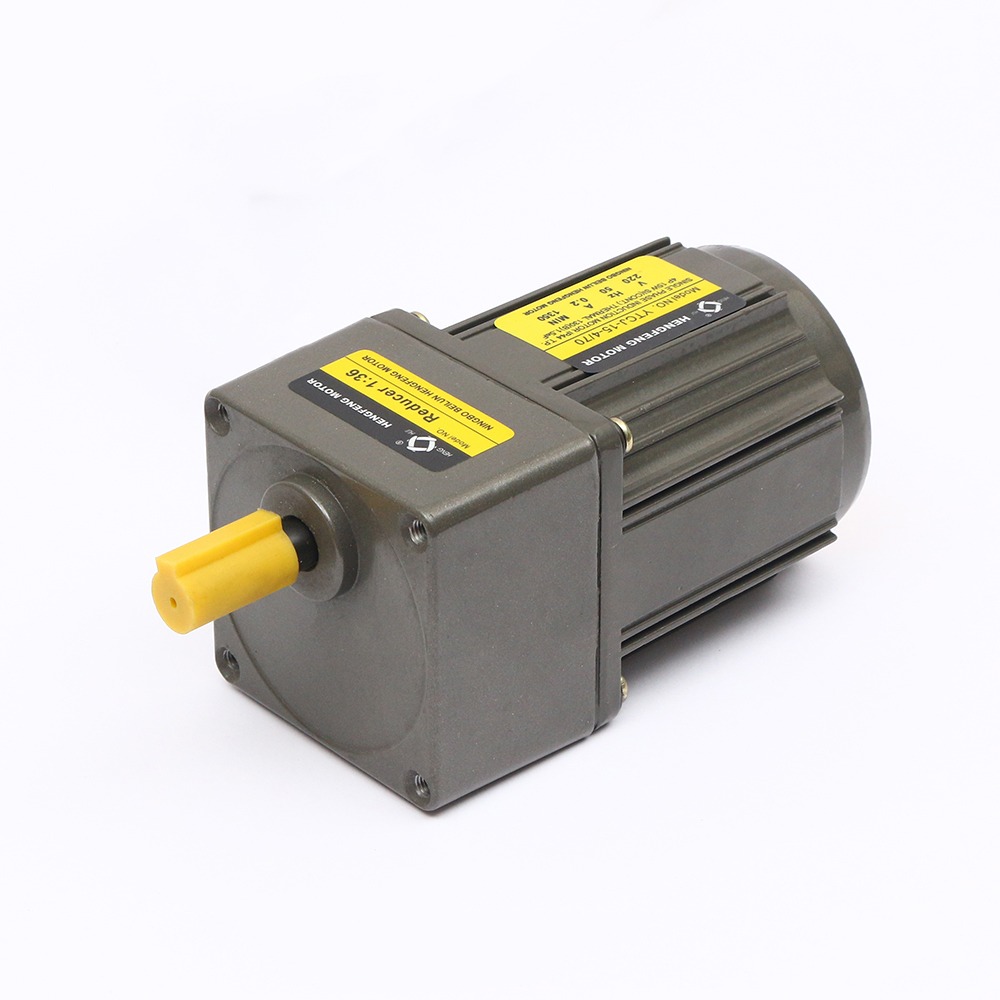

外形尺寸
功率 Power(W): 15W
減速比 Reductio Ratio: 3~15, 18~300
L1(mm): 32, 42
L2(mm): 112, 122
L1+L2(mm): 107, 117
安裝螺釘 Fixing Bolt: M5×55, M5×65
凈重 N.W.(kg): 1.55, 1.75
| 電機性能參數 | |||||||||
|
型號 Type |
功率 Power (W) |
電壓 Voltage (V) |
頻率 Frequency (Hz) |
電流 Current (A) |
起動轉矩 Starting Torue mN.m(g.cm) |
額定轉矩 Rated Speed mN.m(g.cm) |
額定轉速 Rated Speed r/min |
電容 Capacitor μF/VAC |
工作狀態 Operating Mode |
| YYTCJ-15-4/70-1 | 15 | 220 | 50 | 0.22 | 75(750) | 110(1100) | 1350 | 1.5/450 | 連續 Cont |
| YYTCJ-15-4/70-2 | 0.25 | 900(900) | 110(1100) | 1350 | 1.5/450 | 30min | |||
| YYTCJ-15-4/70-3 | 15 | 110 | 60 | 0.40 | 75(750) | 89(890) | 1650 | 6/450 | 連續 Cont |
| YYTCJ-15-4/70-4 | 0.50 | 90(900) | 89(890) | 1650 | 6/450 | 30min | |||
|
允許負載 50Hz |
||||||||||||||||||||||
|
型號 YYTCJ-15-4/70 |
轉速 r/min 速比 |
500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 6 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | ||
|
轉矩 |
0.3 | 0.36 | 0.51 | 0.61 | 0.76 | 0.91 | 1.27 | 15.2 | 1.64 | 2.28 | 2.74 | 3.29 | 4.13 | 4.95 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 3 | 3.6 | 5.1 | 6.1 | 7.6 | 9.1 | 12.7 | 15.2 | 16.4 | 22.8 | 27.4 | 32.9 | 41.3 | 49.5 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
|
允許負載 60Hz |
||||||||||||||||||||||
|
型號 YYTCJ-15-4/70 |
轉速 r/min 速比 |
600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 7.2 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | ||
|
轉矩 |
0.26 | 0.36 | 0.43 | 0.51 | 1.1 | 0.77 |
1.3 |
1.3 | 1.38 | 1.92 | 2.3 | 2.76 | 3.47 | 4.16 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 2.6 | 3.6 | 4.3 | 5.1 | 11 | 7.7 | 11 | 13 | 13.8 | 19.2 | 23 | 27.6 | 34.7 | 41.6 | 13 | 50 | 50 | 50 | 50 | 50 | 50 | ||
