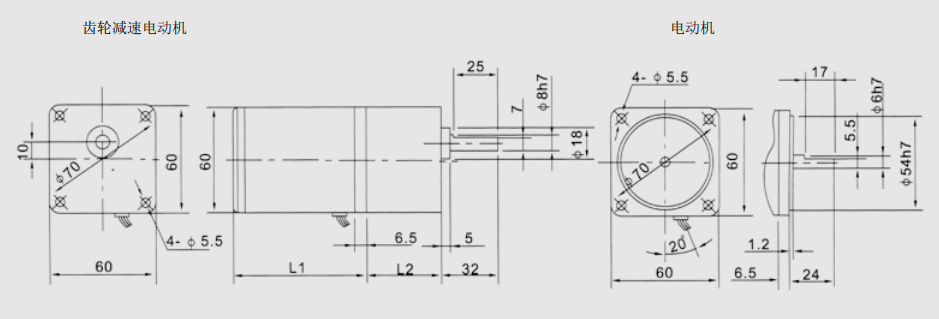

外形尺寸
功率 Power(W): 6W
減速比 Reductio Ratio: 3~10, 20~180
L1(mm): 75, 75
L2(mm): 32, 42
L1+L2(mm): 107, 117
安裝螺釘 Fixing Bolt: M5×55, M5×65
凈重 N.W.(kg): 1.25, 1.30
| 電機性能參數 | |||||||||
|
型號 Type |
功率 Power (W) |
電壓 Voltage (V) |
頻率 Frequency (Hz) |
電流 Current (A) |
起動轉矩 Starting Torue mN.m(g.cm) |
額定轉矩 Rated Speed mN.m(g.cm) |
額定轉速 Rated Speed r/min |
電容 Capacitor μF/VAC |
工作狀態 Operating Mode |
| YYTCJ-6-4/60-1 | 6 | 220 | 50 | 0.14 | 40(400) | 43(430) | 1350 | 1/450 | 連續 Cont |
| YYTCJ-6-4/60-2 | 0.16 | 45(450) | 43(430) | 1350 | 1/450 | 30min | |||
| YYTCJ-6-4/60-3 | 6 | 110 | 60 | 0.28 | 40(400) | 35(350) | 1650 | 4/450 | 連續 Cont |
| YYTCJ-6-4/60-4 | 0.32 | 45(450) | 35(350) | 1650 | 4/450 | 30min | |||
|
允許負載 50Hz |
|||||||||||||||||||||||
|
型號 YYTCJ-6-4/60 |
轉速 r/min 速比 |
500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 6 | 5 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | 300 | ||
|
轉矩 |
0.08 | 0.09 | 0.13 | 0.16 | 0.19 | 0.23 | 0.33 | 0.35 | 0.42 | 0.59 | 0.7 | 0.84 | 1.1 | 1.3 | 1.6 | 1.7 | 1.9 | 2.3 | 2.5 | 2.5 | 2.5 | 2.5 | |
| 0.8 | 0.9 | 1.3 | 1.6 | 1.9 | 2.3 | 3.3 | 3.5 | 4.2 | 5.9 | 7 | 8.4 | 11 | 13 | 16 | 17 | 19 | 23 | 25 | 25 | 25 | 25 | ||
|
允許負載 60Hz |
|||||||||||||||||||||||
|
型號 YYTCJ-6-4/60 |
轉速 r/min 速比 |
600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 7.2 | 6 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | 300 | ||
|
轉矩 |
0.06 | 0.08 | 0.1 | 0.13 | 0.16 | 0.19 | 0.26 | 0.29 | 0.34 | 0.47 | 0.57 | 0.68 | 0.86 | 1 | 1.3 | 1.4 | 1.5 | 1.8 | 2.3 | 2.5 | 2.5 | 2.5 | |
| 0.6 | 0.8 | 1 | 1.3 | 1.6 | 1.9 | 2.6 | 2.9 | 3.4 | 4.7 | 5.7 | 6.8 | 8.6 | 1 | 13 | 14 | 15 | 18 | 23 | 25 | 25 | 25 | ||
外形尺寸
