外形尺寸
功率 Power(W): 40W
減速比 Reductio Ratio: 3~12.5, 15~300
L1(mm): 45, 60
L2(mm): 150, 165
安裝螺釘 Fixing Bolt: M6×70, M6×85
凈重 N.W.(kg): 3.5, 4.0
| 電機性能參數 | |||||||||
|
型號 Type |
功率 Power (W) |
電壓 Voltage (V) |
頻率 Frequency (Hz) |
電流 Current (A) |
起動轉矩 Starting Torue mN.m(g.cm) |
額定轉矩 Rated Speed mN.m(g.cm) |
額定轉速 Rated Speed r/min |
電容 Capacitor μF/VAC |
工作狀態 Operating Mode |

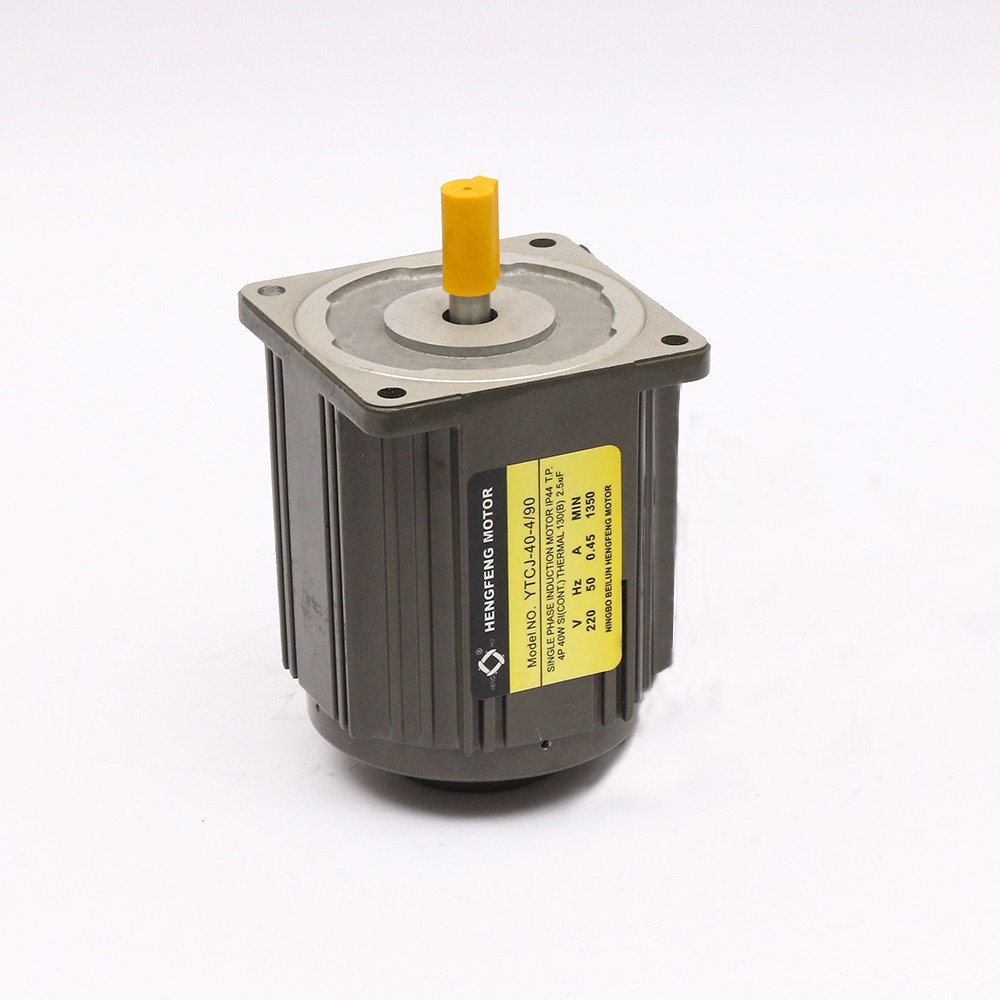

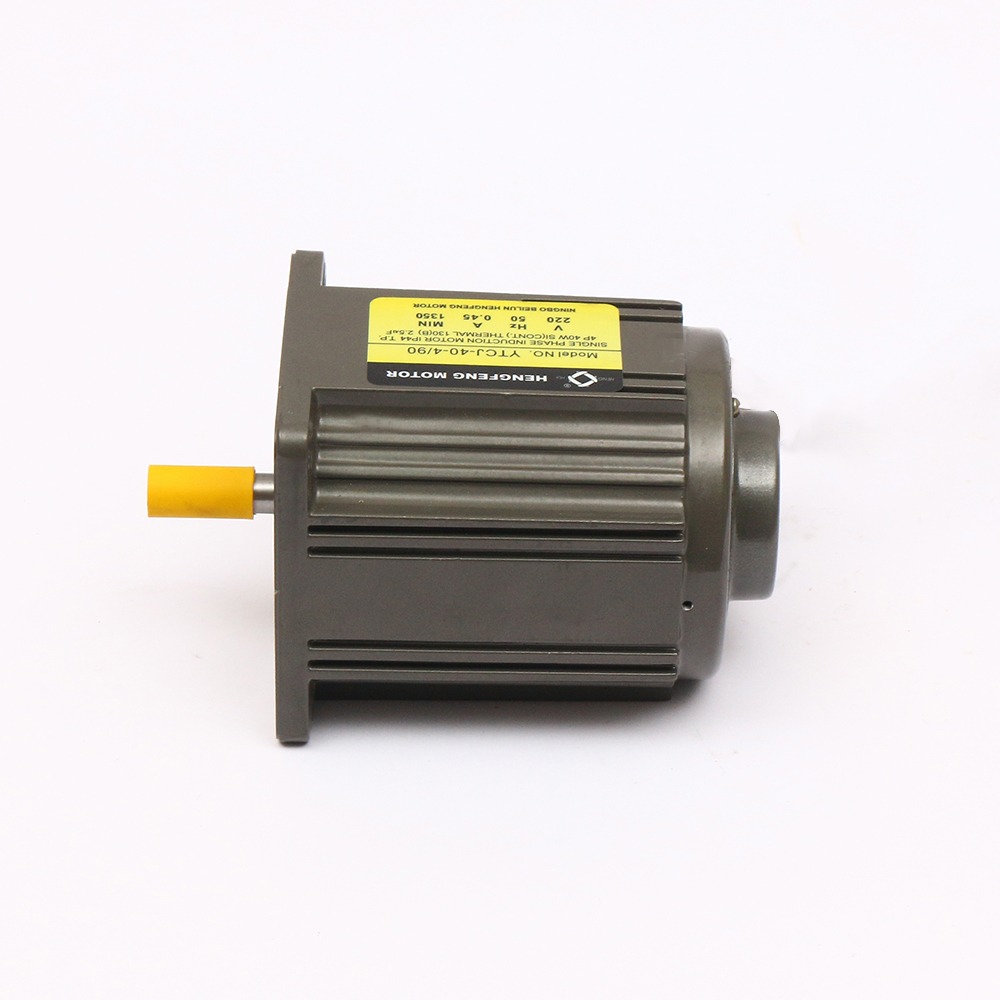

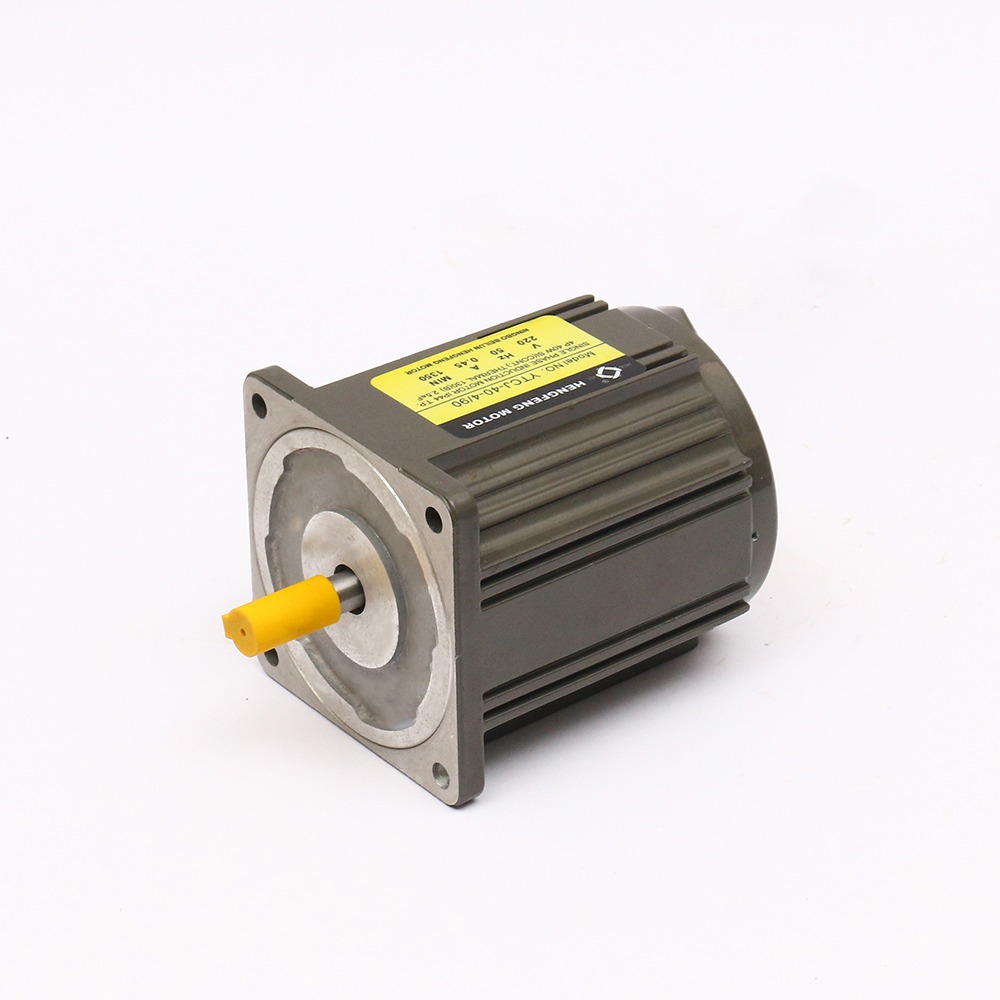

| YYTCJ-40-4/90--1 | 40 | 220 | 50 | 0.45 | 220(2200) | 290(2900) | 1350 | 2.5/450 | 連續 Cont |
| YYTCJ-40-4/90--2 | 0.50 | 300(3000) | 290(2900) | 1350 | 2.5/450 | 30min | |||
| YYTCJ-40-4/90--3 | 40 | 110 | 60 | 0.9 | 220(2200) | 240(2400) | 1650 | 15/450 | 連續 Cont |
| YYTCJ-40-4/90--4 | 0.1 | 260(2600) | 240(2400) | 1650 | 15/450 | 30min | |||
|
允許負載 50Hz |
||||||||||||||||||||||
|
型號 YYTCJ-40-4/90 |
轉速 r/min 速比 |
500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 6 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | ||
|
轉矩 |
0.73 | 0.87 | 1.22 | 1.46 | 1.82 | 2.19 | 3.04 | 3.28 | 3.94 | 5.48 | 6.57 | 7.88 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 7.3 | 8.7 | 12.2 | 14.6 | 18.2 | 21.9 | 30.4 | 32.8 | 39.4 | 54.8 | 65.7 | 78.8 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
|
允許負載 60Hz |
|||||||||||||||||||||||
|
型號 YYTCJ-40-4/90 |
轉速 r/min 速比 |
600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 7.2 | 6 |
| 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 250 | 300 | ||
|
轉矩 |
0.63 | 0.76 | 1.1 | 1.26 | 1.58 | 1.9 | 2.63 | 2.85 | 3.42 | 4.75 | 5.7 | 6.8 | 8.6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 6.3 | 7.6 | 11 | 12.6 | 15.8 | 19 | 26.3 | 28.5 | 34.2 | 47.5 | 57 | 68 | 86 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
外形尺寸
